Product Details
- Brand: AUBIG
- Dimensions: 3.15" h x
9.06" w x
12.60" l,
1.10 pounds
Features
- Automatic change to backup view when on reverse position, even the monitor is turned off
- Waterproof, heavy-duty block camera with sun vision, easy to mount and adjust
- Camera uses SHARP 1/3" high-resolution CCD and wide field of view lens,Built in high-powered IR LED for night vision function
- Built-in quad control box function ,Support four camera inputs
- Single View/Split view/Quad view selectable,Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

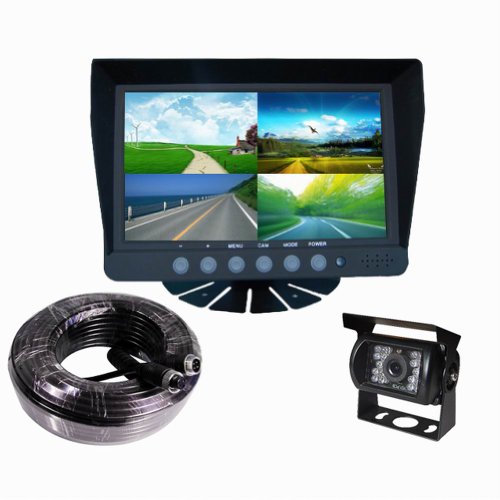

9 Inch Quad TFT/LCD Video Monitor Night Vision Backup Camera Car Rear View System for RV, Truck, Trailer, Bus, Fifth-Wheel
Product Description
This car rear view system is complete with a crystal clear 7" TFT LCD COLOR monitor with mirror image capability,the Resolution is 800 x (RGB) x 480dots, a 2 channel multiplexer (can connect a dvd player or other cameras) with automatic system switch, 108 degrees CCD camera with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The system is completely weather proof with a IP66 rating, strong and reliable, shock resistant with a 10G impact rating (highest in the industry) and comes with a full year warranty.
Power input: 12~32V
7 inch TFT LCD monitor ,16:9
Wide view angle(CR>10): (up/down/left/right): 40/40/60/60
Resolution:800xR.G.Bx480dots
Color system: PAL/NTSC (optional)
Power requirement: 12/24V DC
Power consumption: <=5W
Operating temperature: -20C to +70C
Storage temperature: -30C to +80C
Dimension: 183 (L)x125 (W)x38 (D)
CCD
Images Sensors : 1/3" SHARP COLOR CCD
TV System : NTSC
Effective Pixels : 512 x 582/512 x 492
Sensing Area(mm) : 4.9 x 3.7
Resolution(TV Lines) : 420
Min.illumination(Lua/F1.2) : 0
Horizontal Sync.Frequency(KHZ) : 1/50 or 1/60 ~ 1/10,000
Vertical Sync.Frequency(HZ) : 15.625/15.734
Video Output : 1Vp-p,75 Ohm
BLC : Auto
S/N ratio : Better than 48dB
Lens : F=2.8mm/F=2.0
Lens Angle(Deg.) : 108
Current Consumption(mA) : 290
Power Supply(DCV) : 12
Operating Temperature(Deg.C) : -20~+70(RH95%Max.)
Storage Temperature(Deg.C) : -40~+80(RH95%Max.)
Dimension : 75 x 43 x 57mm
Package
7" stand-alone rear view LCD monitor
20 meters aviation cable
1 PCS CCD rear view camera
